Control - Section 2: Electrode placement and AED screens

The Electrode Placement screen in HR Control is particularly useful when running scenarios with AED and Semi-automatic AED screens

1. On the Control iPad, choose a scenario or monitor screen but do not press Start.

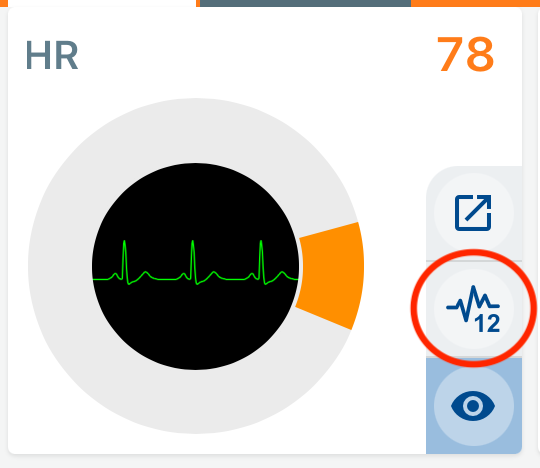

2. Tap on the Electrode placement button

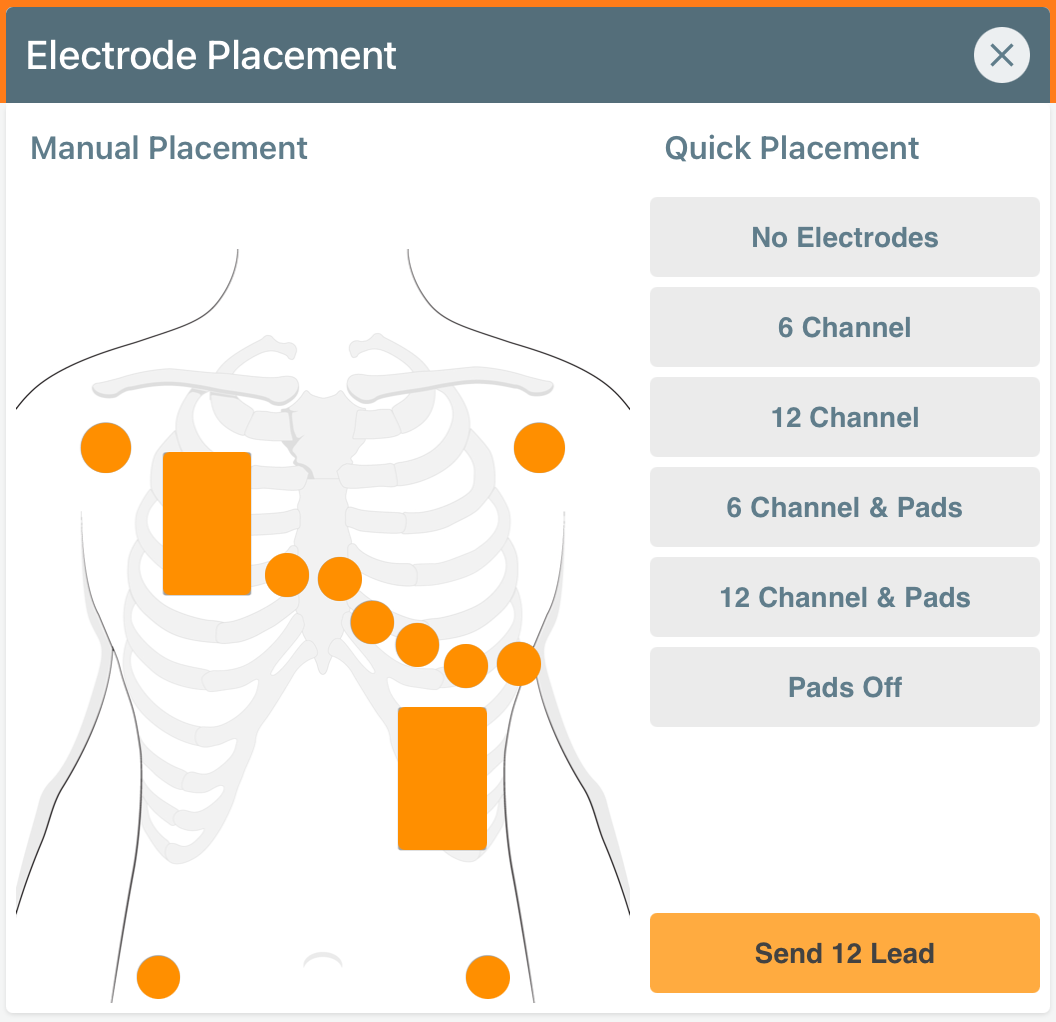

3. This is what you should see:



4. Now tap on No Electrodes - all of the Electrodes and Pads will go grey.



5. Start the scenario and start the AED or Semi-automatic AED

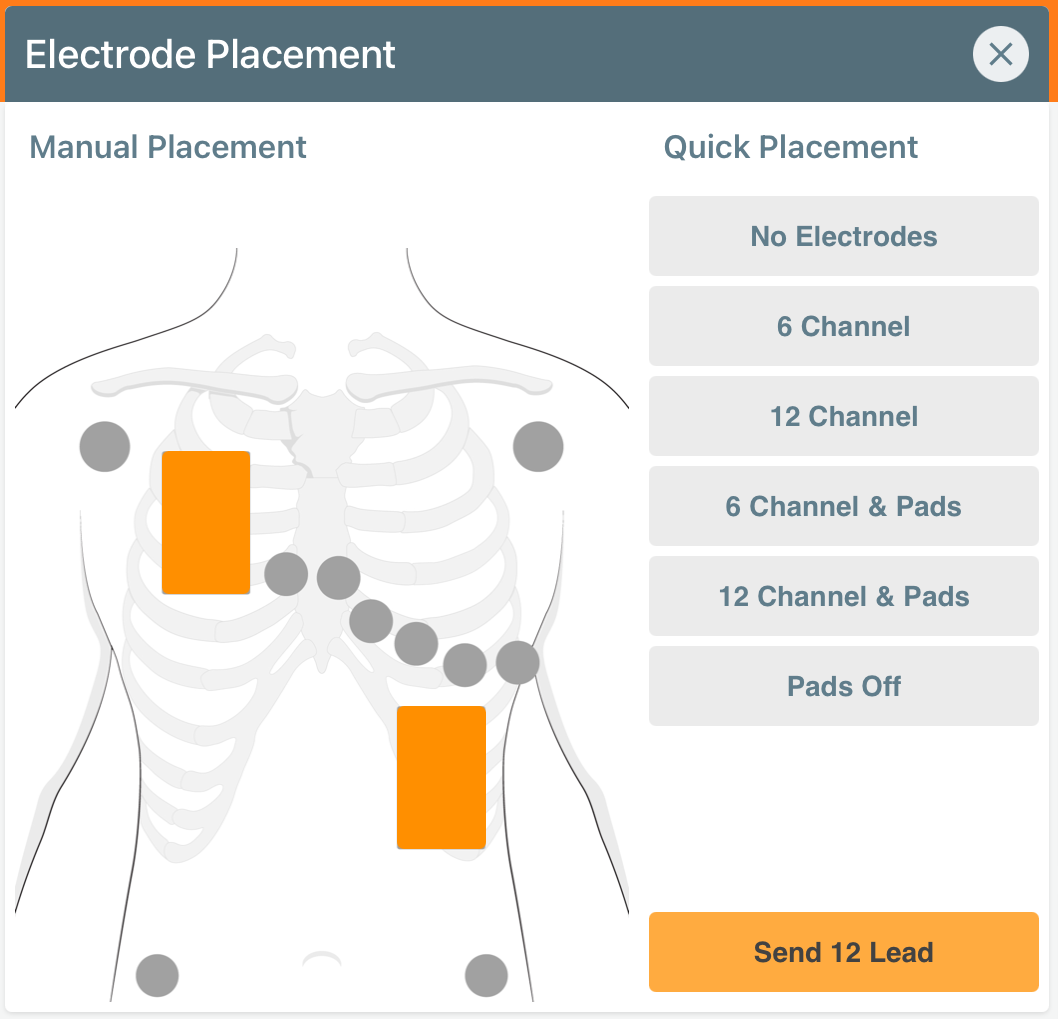

6. When the students have connected to the Pads to the Manikin, tap on Pads On.
   This will allow the AED or Semi-automatic AED to progress to analysing the ECG signal.
