Control - Section 2: ETCO2 and Respiratory Rate Control

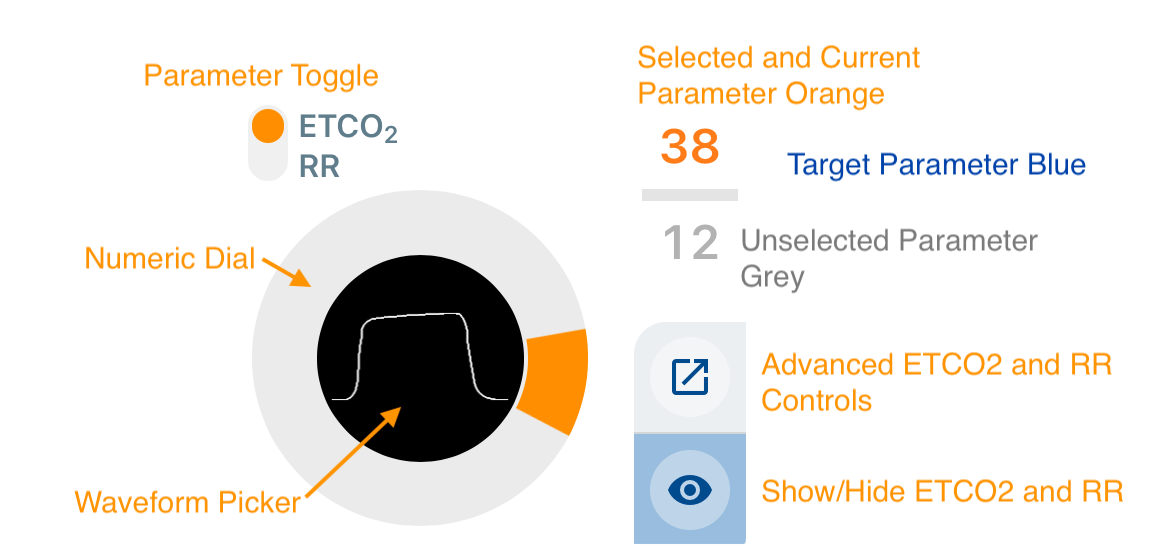

Overview of ETCO2 and Respiratory Rate Control

ETCO2 and RR Numeric

Orange for current and selected ETCO2 or RR displayed on Monitor
Blue for the target ETCO2 or RR changed by the Dial.
Grey for the Unselected Parameter

Parameter Toggle

Switch between ETCO2 and RR control

Numeric Dial

Changes the ETCO2 or RR value
See Overview of Dials and Numerics

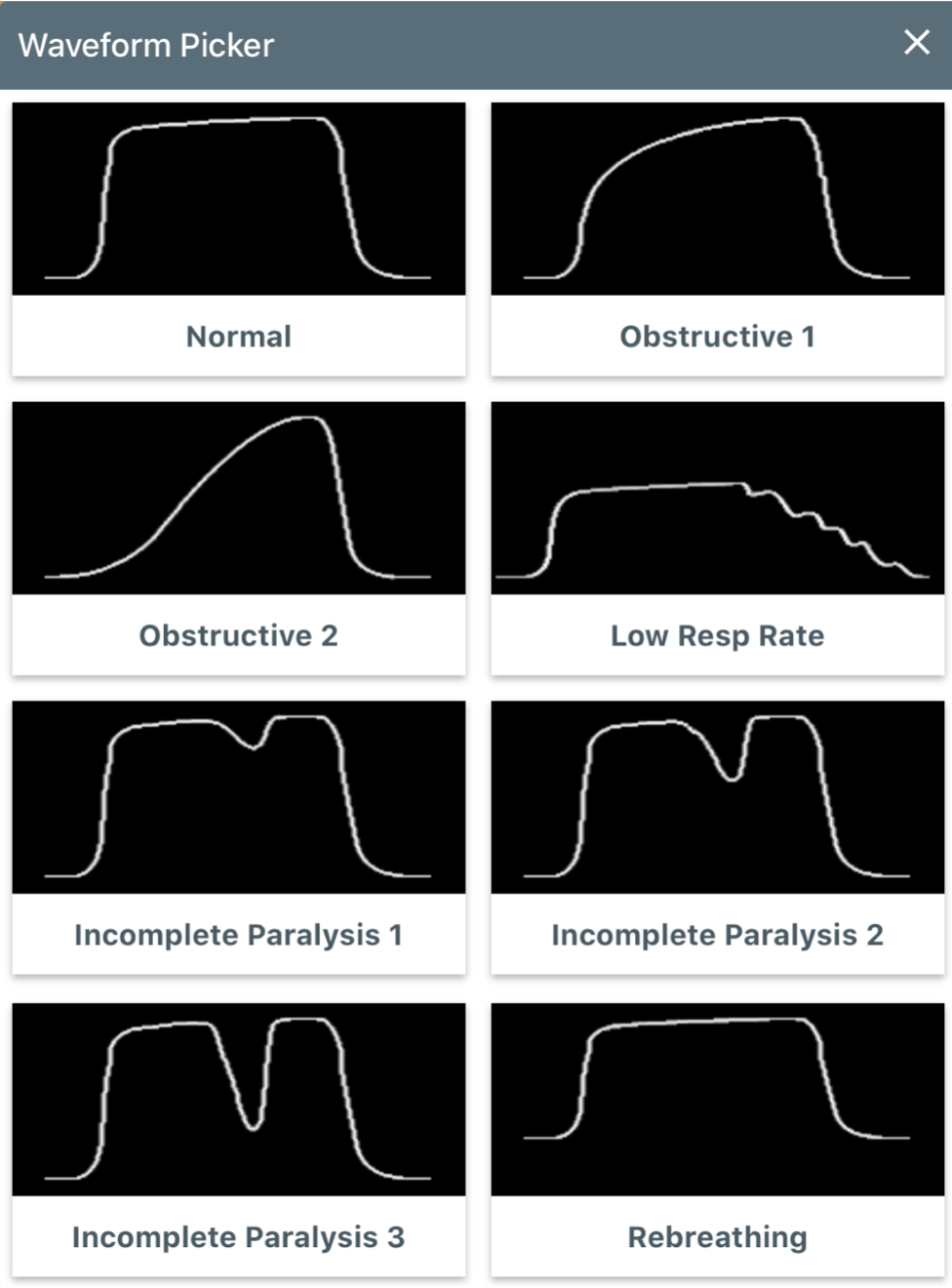

Waveform Picker

Tap on the centre of the dial to show the Waveform Picker

Choose an ETCO2 waveform and press Send to activate

Show/Hide

Tap on this to Show  or Hide  the ETCO2 or RR on the Monitor screen.

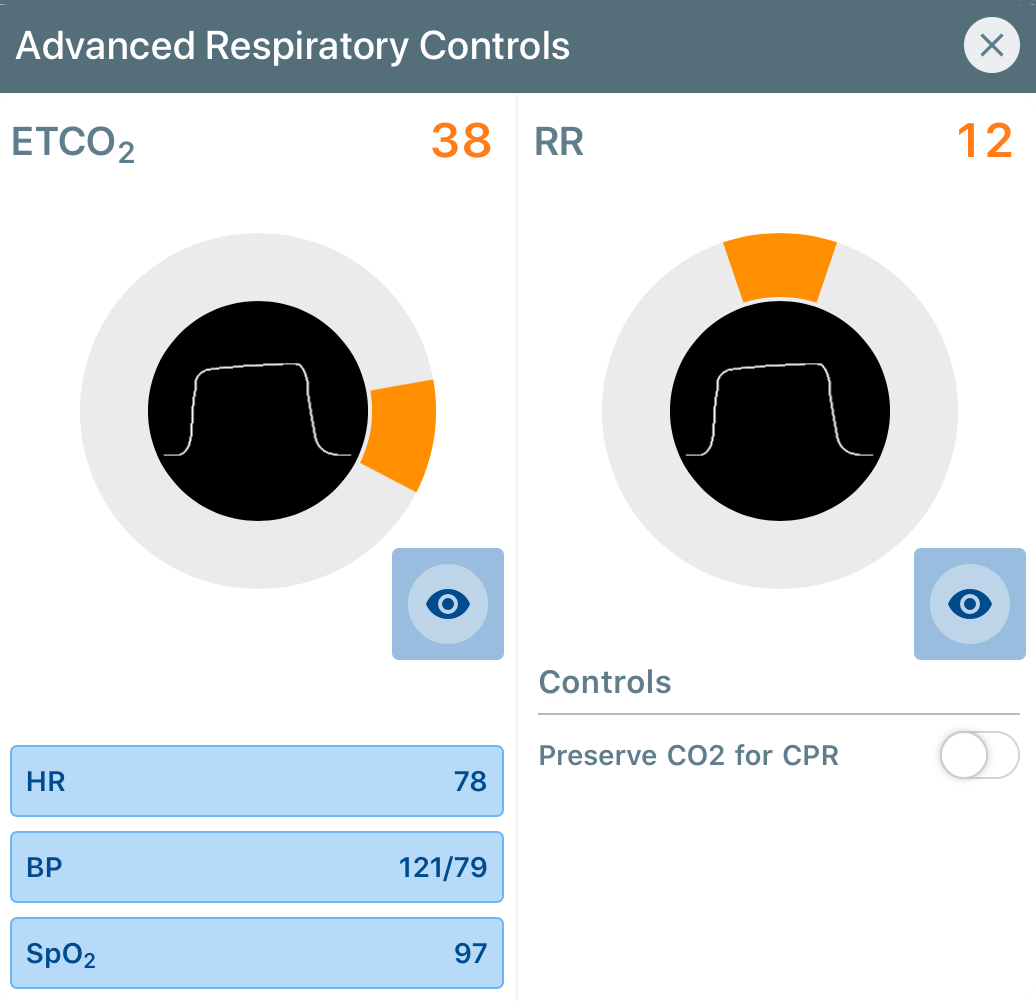

Advanced ETCO2 and RR Controls

Tap on the icon  to open Advanced ETCO2 and RR Controls

This works in the same way as the standard controls but allows you to control ETCO2 and RR at the same time.

Preserve CO2 for CPR

This will remember the CO2 value set when CPR is in progress with non-perfusing ECG waveforms such as Ventricular Fibrillation.
