Control - Section 6: Timers, Flags, Stop & Pause Scenario, Virtual timer, Trend buttons, Preview and Send – iSimulate 繁體中文

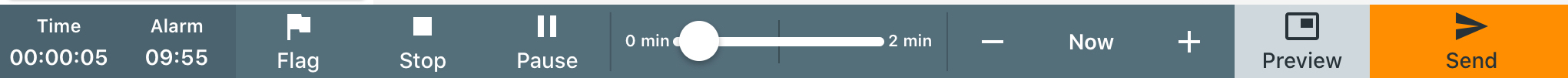

The lowest bar on the control screen display and controls the following:

Elapsed time since beginning of scenario.

Countdown which is set for each scenario in Scenario Information

Both of these Times are influenced by the Virtual Timer

This allows you to mark or flag an event in a scenario. These are displayed in the Scenario Review once the scenario has ended.

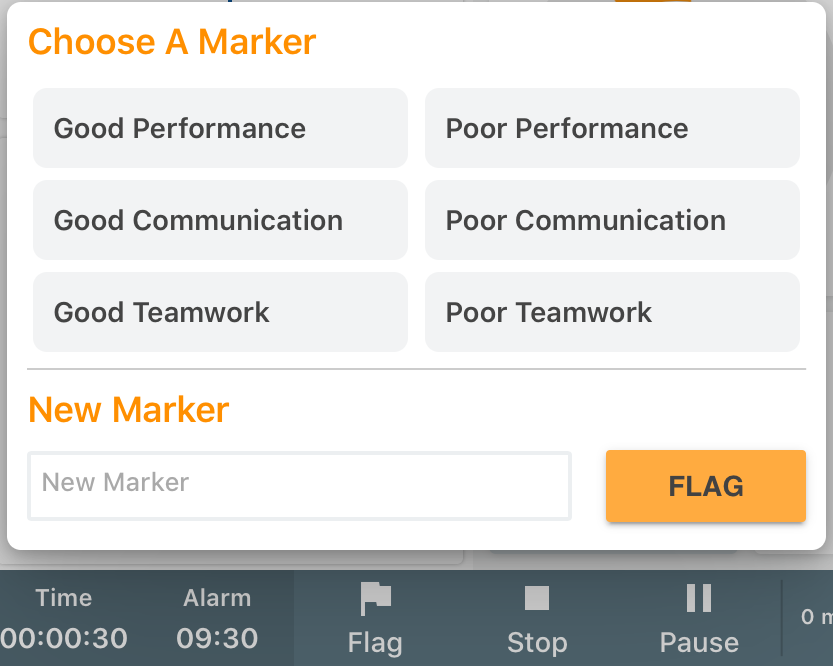

Tap on Flag to open up the Marker Menu

Choose a Marker - Tap on one of the pre-defined markers

New Marker - Tap in the New Marker box to type in a comment and then press Flag

Flag - Tap on Flag to juts add a new Flag

This stops the current scenario and displays the Scenario Review

The pauses the current scenario. The Monitor screen becomes black with the message Scenario Paused and all sounds are muted.

Tap on Play to restart scenario.

Slide this to advance time artificially in a scenario. This can help with shortening the time for CPR cycles if required.

Tap on this to show a preview screen on Control of what the vital signs will be if you have changed a value but not pressed Send

This will send any changed values to the monitor screen
