Scenario Review and Debriefing with Camera and Control

REALITi automatically keeps track of everything during a scenario.

This includes changes to vital signs, waveforms, CPR start and stop, shock delivery, checklist items, media and lab results.

In addition, if any Flags are selected, these are recorded as well.

When connected to Camera and with video recording selected, REALITi becomes a simple to use video review and debriefing system.

Scenario Review and Debrief

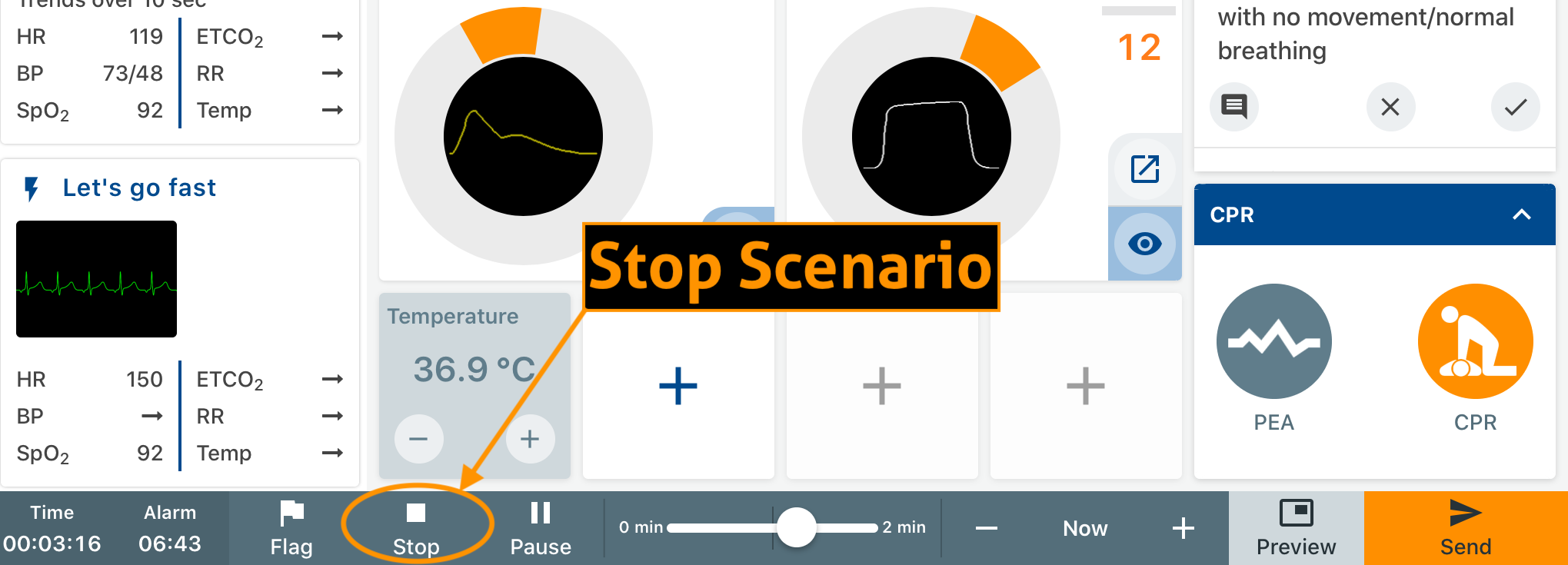

Once a scenario has finished, tap on Stop on the Control iPad.

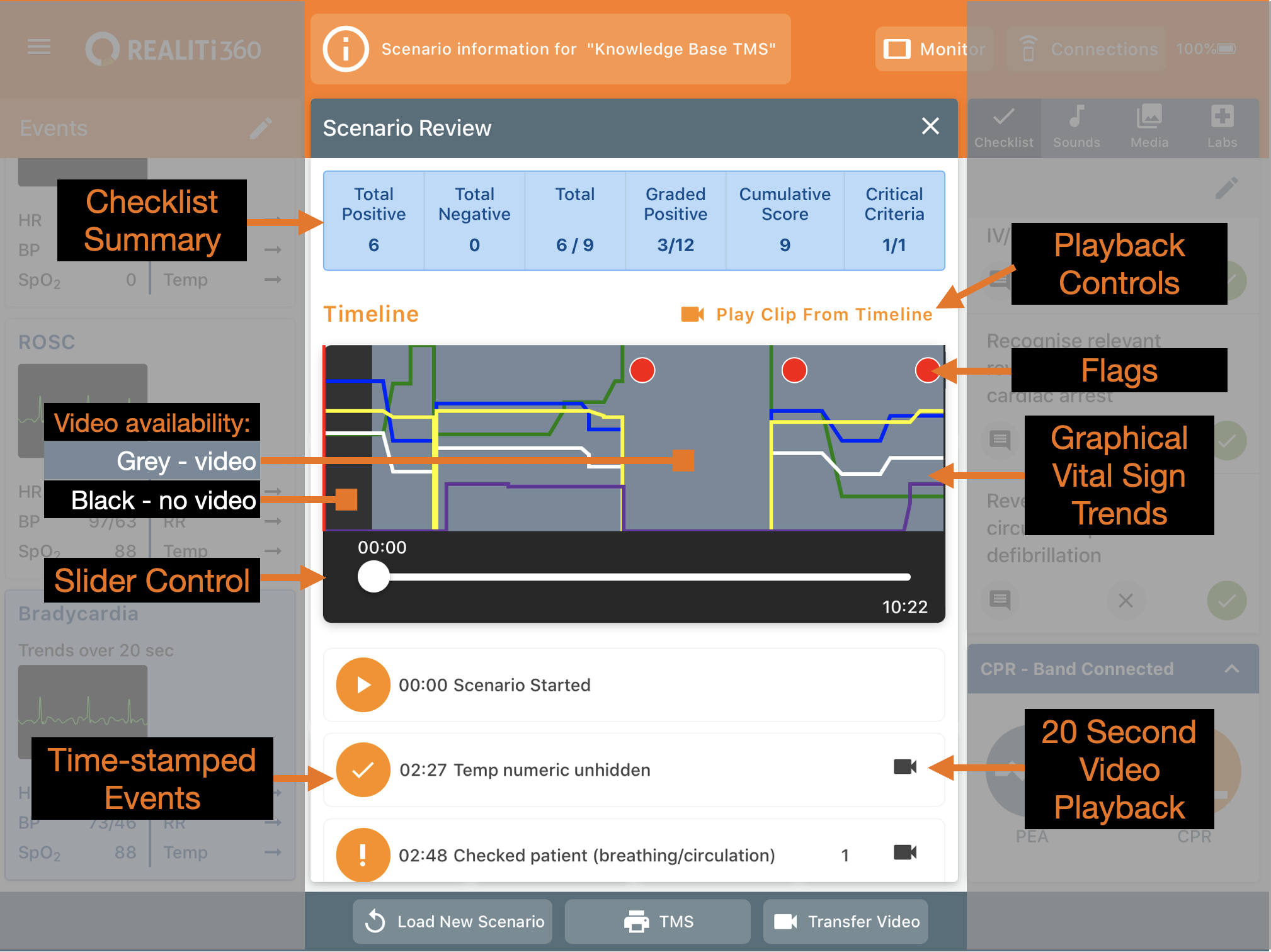

You will then see the Scenario Review Screen

Checklist Summary - a summary of the results of the checklist items in the scenario

• Total positive
• Total negative
• Total
• Graded Positive
• Cumulative score (Total Positive + Graded Positive)
• Critical Criteria

Graphical vital signs trend

• Heart Rate - Green
• SpO2 - Yellow
• Systolic Blood Pressure - Blue
• Diastolic Blood Pressure - White
• CO2 - Purple

Graphical vital signs background colour

• Grey indicates a video has been recorded
• Black indicates no video has been recorded



Slider control

Drag this to move the red vertical timeline bar.

Playback controls

Play, pause and stop video playback indicated by the red vertical timeline bar

Flags

These are shown as red circles on the graphical vital signs trend

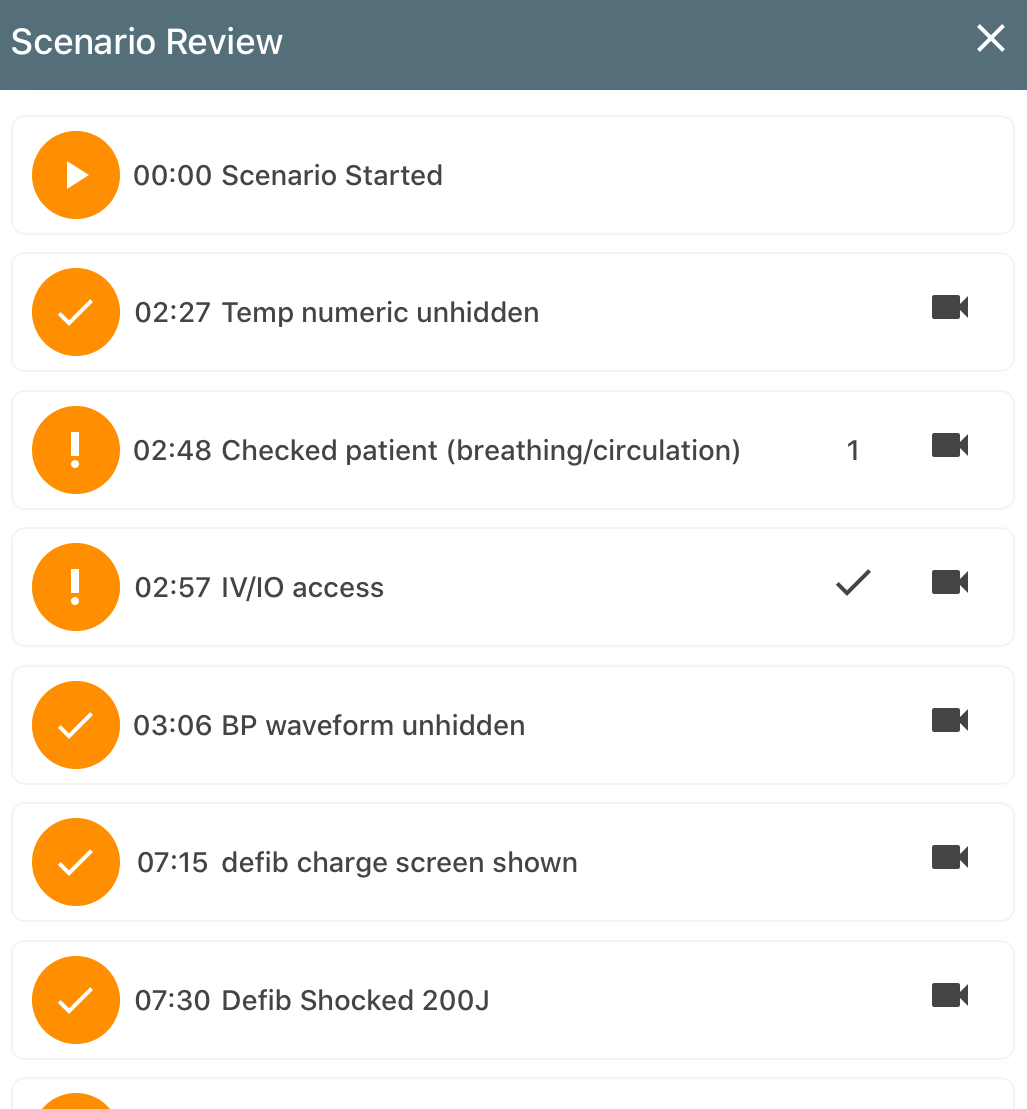

Time-stamped Events

This shows all time-stamped events such as

• Checklist items
• Flags
• Show/hide vital signs
• Device interactions
• Defibrillation
• CPR module detection



iVAD - instant Video Assisted Debriefing

The video camera icon next to a time-stamped event shows that a 20 second video is available.

When pressed, video playback will start at 10 seconds before the time-stamp and continue to play for 10 seconds after the time-stamp and then stop.

It's an ideal way to provide instant Video Assisted Debriefing (iVAD)

Transfer Video

Press this button to transfer the recorded video file from the Camera to the Control iPad.
The video will be saved in the Photos App on the iPad.
The video has the vital signs overlay included.

TMS

Tap on this button to open up the scenario review in the Training Management System
