Camera Connection

Anthony Lewis

Connect REALITi Control to a REALITi Monitor
On the Camera iPad, select mirror iPad to Apple TV if you want to live stream video

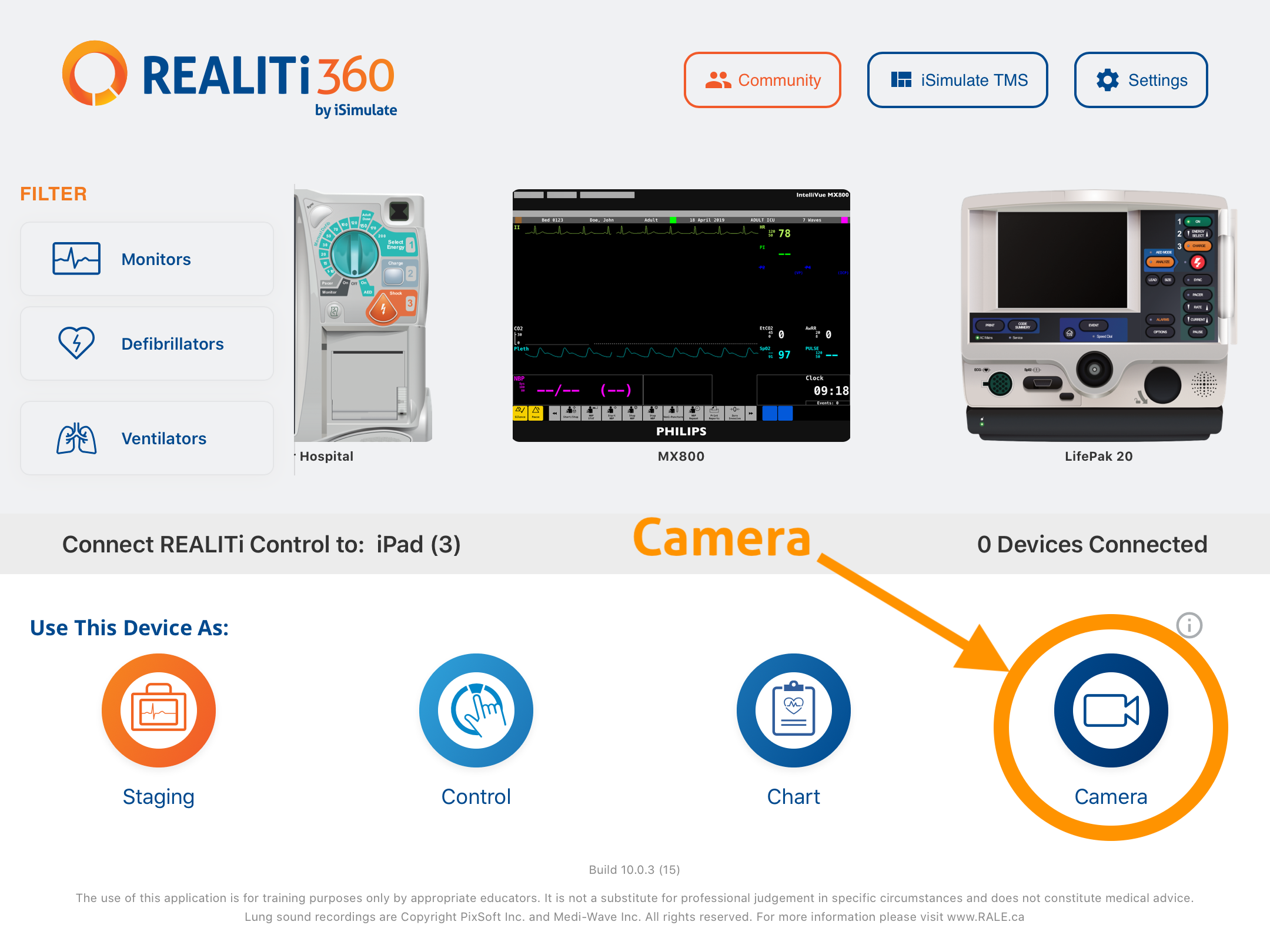

On the Camera iPad, select Camera
The screen changes to show a live video feed with a pop-up.

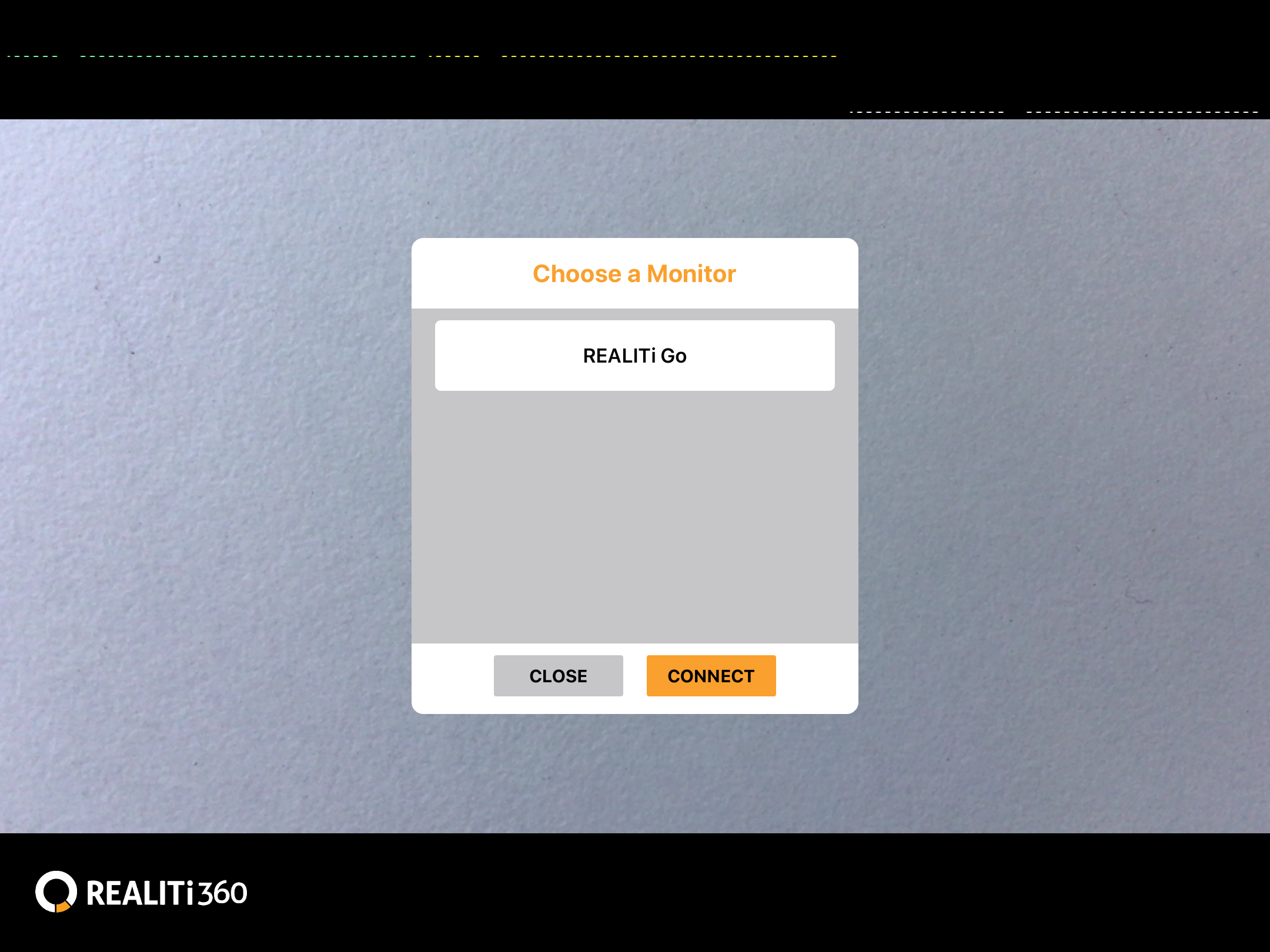

Select the REALITi monitor to connect to and confirm with Connect.
On the Control iPad, you will now see an option to record the scenario.
This must be Yes if you want to do video-debriefing.
Once the scenario is started, you will see live video in the centre of the screen with the vital sign numerics on the bottom of the screen and the waveforms on the top.

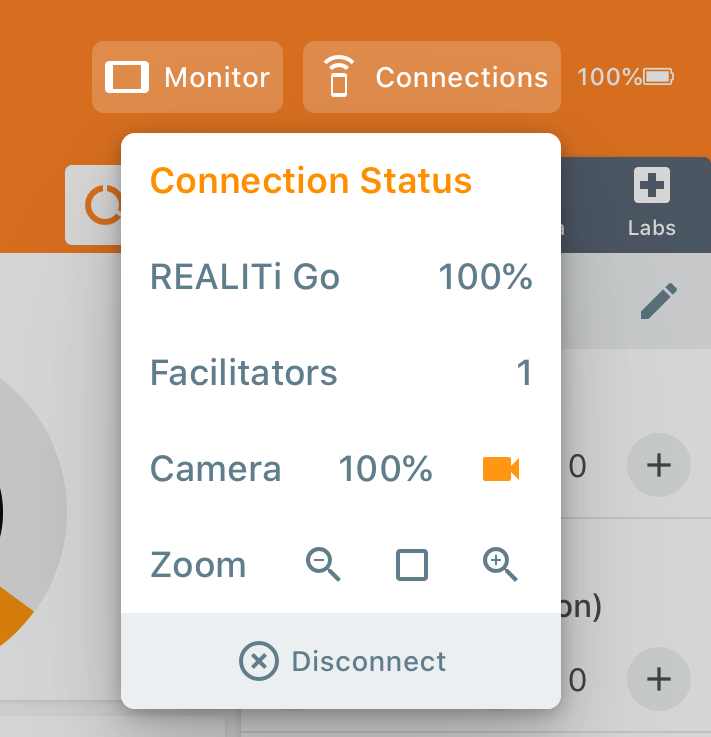

On Control, tap on Connections in the top right of the screen to open up the Connection Status menu

To control the Camera zoom, tap on the - and + in the Zoom setting.
