Overview of Blood Pressure Control

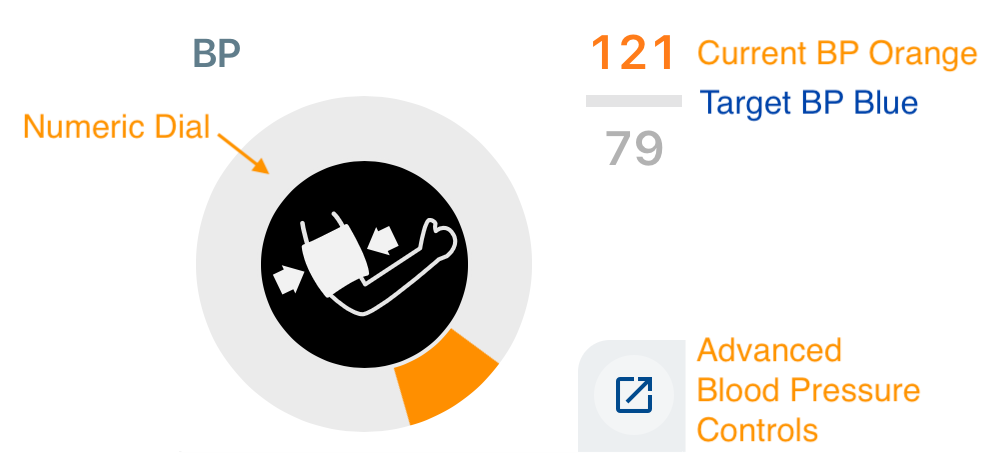

Blood Pressure Numeric
Displays Systolic and Diastolic Blood Pressure
Orange for current Blood Pressure displayed on Monitor
Blue for the target Blood Pressure changed by the Dial.
Numeric Dial
Changes the Blood Pressure value
See Overview of Dials and Numerics

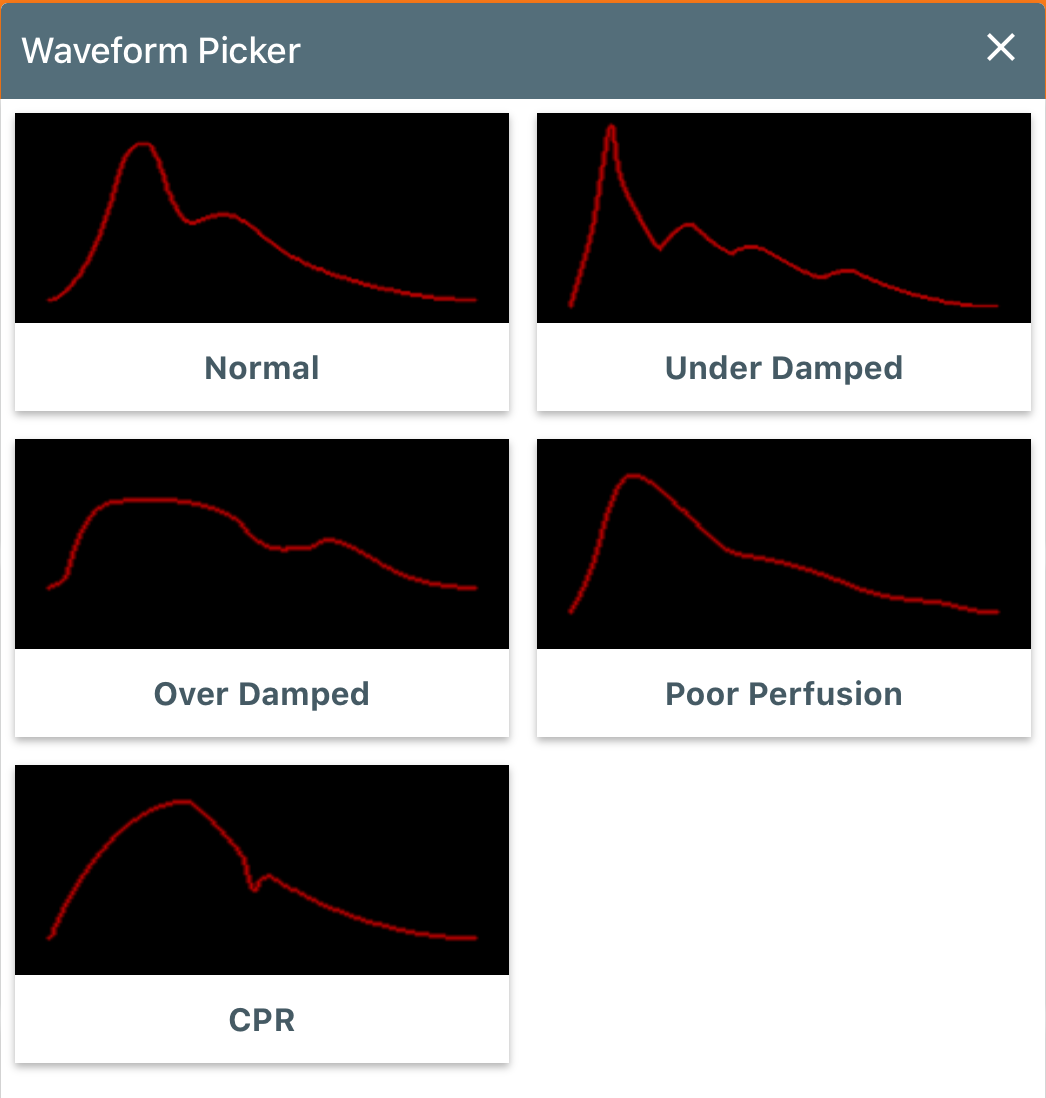

Waveform Picker
Only active when an Arterial Line is shown.

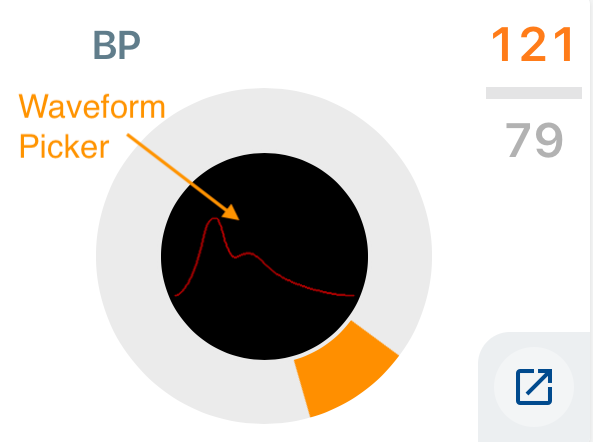

Tap on the centre of the dial to show the Waveform Picker
Choose an Arterial Waveform and press Send to activate.

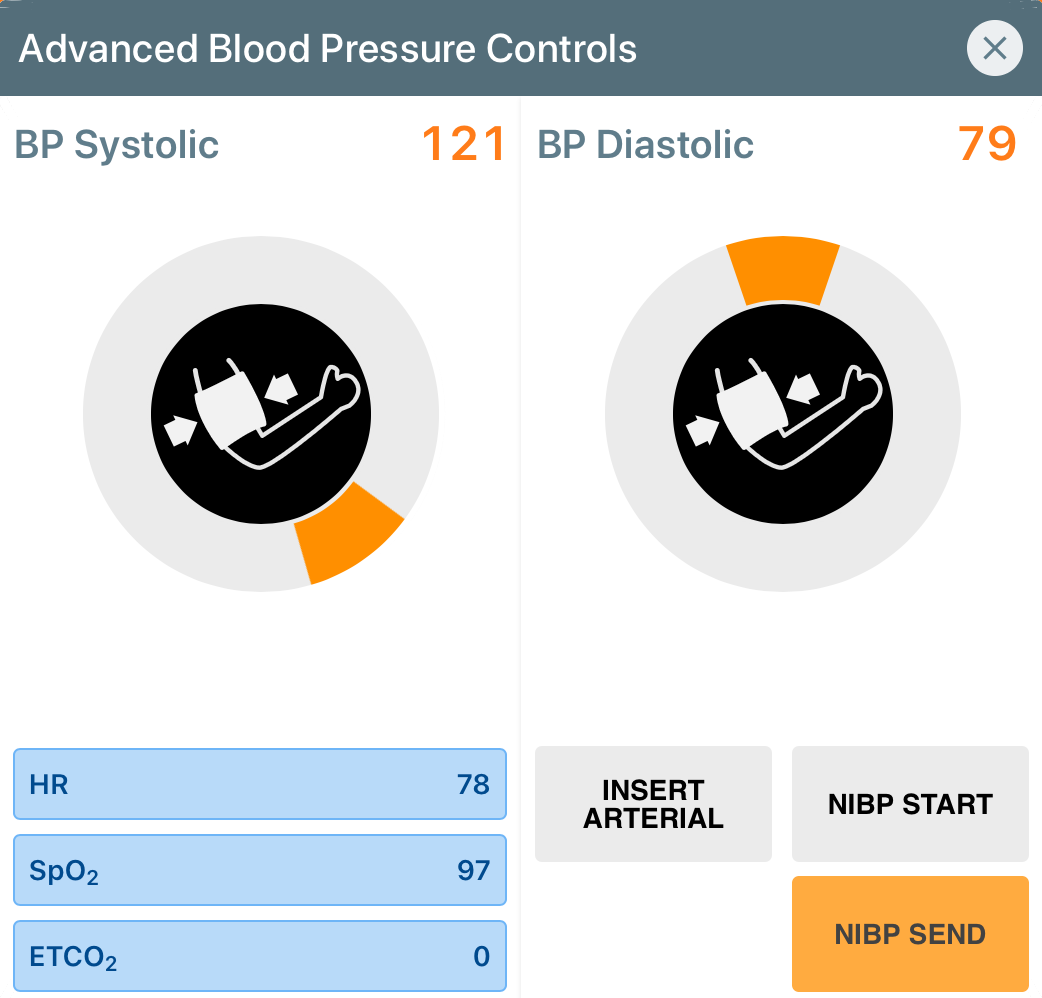

Advanced Blood Pressure Controls
Two Dials for independent control of Systolic and Diastolic Blood Pressure.
NIBP Start activates the Non Invasive Blood Pressure animation which will show a monitor screen recording a blood pressure.
NIBP Send will send a Non Invasive Blood Pressure to the monitor screen immediately with no animation.

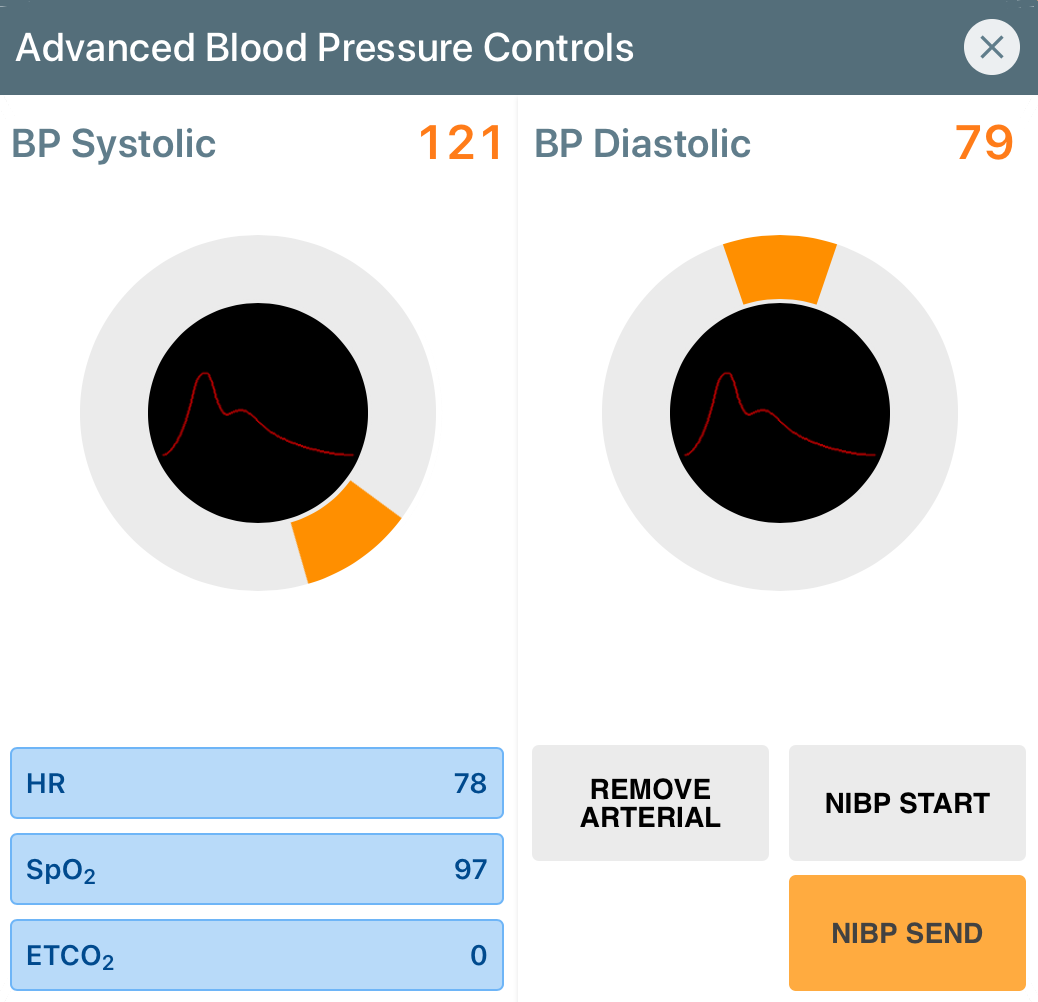

Insert Arterial will show the an Invasive Arterial Waveform on a monitor screen. This will change the centenaries of the dial to the Arterial Waveform Image and this now becomes the Arterial Waveform Picker (see above).
Remove Arterial will hide the Invasive Arterial Waveform on a monitor screen.
