Events are the way you can create, edit and run scenarios in REALITi.
A unique feature of REALITi is the ability to run a preset scenario while also being able to adjust parameters on the fly with the dial/slider controls.
You can also easily edit a scenario on-the-fly.

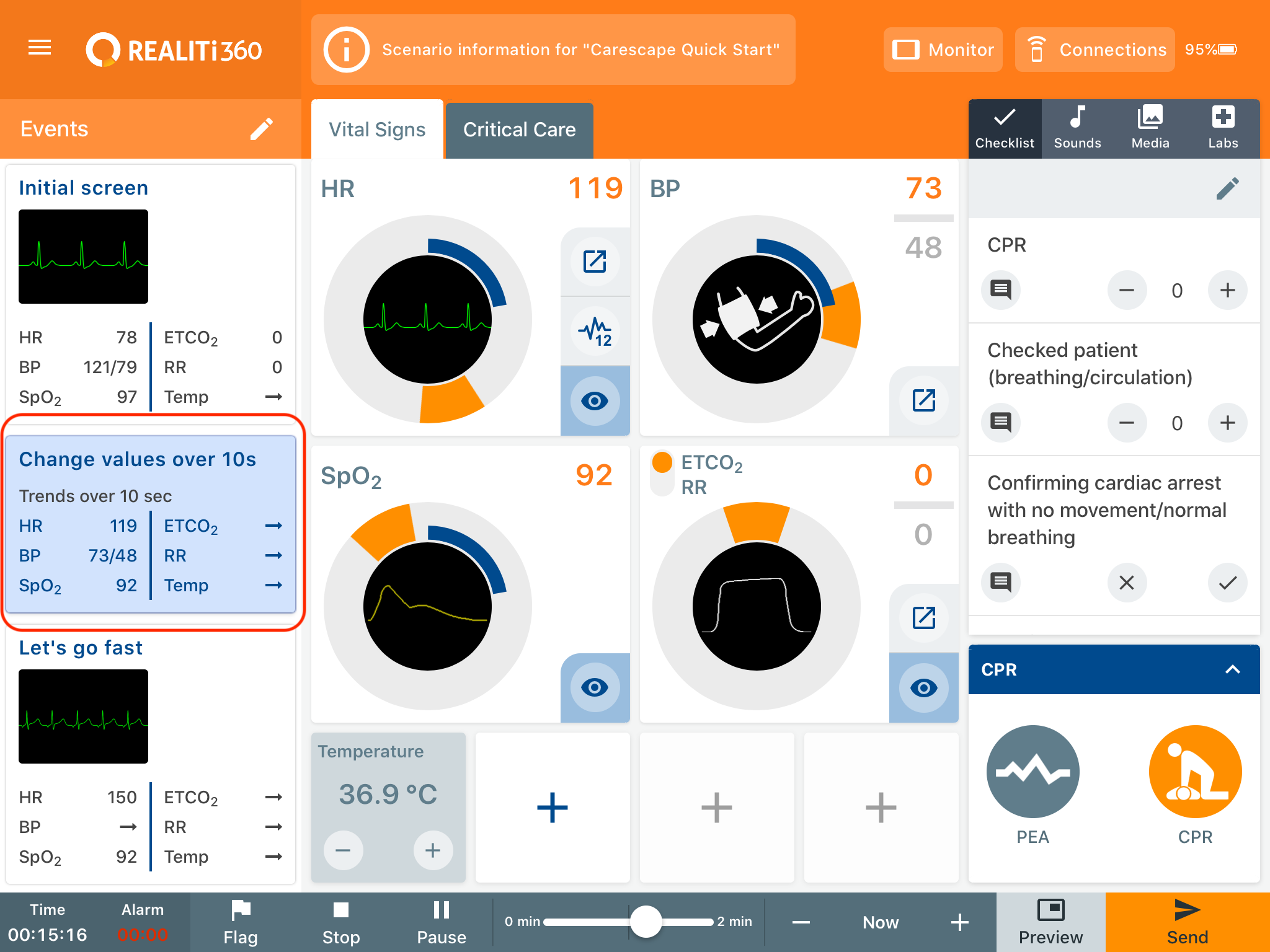

Selecting an event
Tap on an event box to activate it.
It turns light blue and automatically activates.

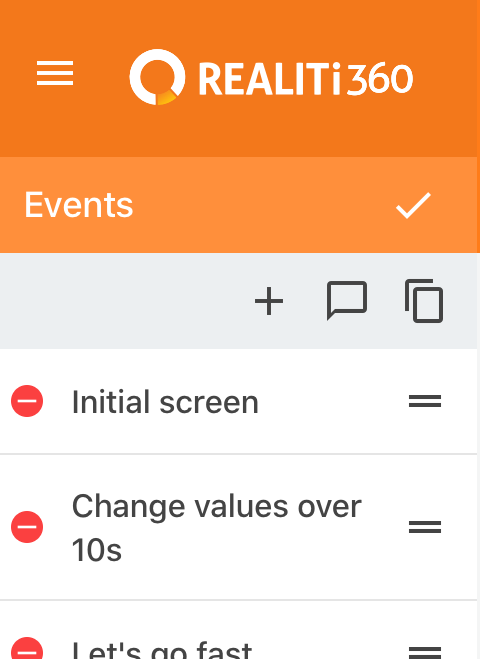

Tap on the pencil icon
This makes every event box editable
Now you can....

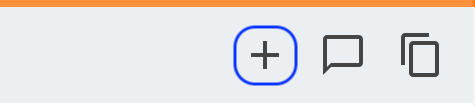

Add an event.
Add a text box
Duplicate an item
Editing an Event
When you select an Event, it opens up to reveal all of the parameters and controls associated with that event.
This allows you to:
- Change Trend Time
- Change Jump time
- Enable Shock - jump to next event
- Enable Disarm - jump to next event
- Change Monitor screen
- Alter parameters values, waveforms and show/hide status
- Add Checklist, Sounds, Media and Investigations
For more information on how to use Events to create Scenarios, see Scenario Creation.......
Next Dials and Numerics
