Section 4: Fetal Heart Rate

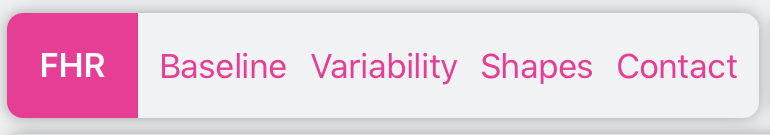

The pink FHR (Fetal Heart Rate) editing buttons allow you to edit

• Baseline
• Variability
• Shapes
• Contact

Baseline

When this is selected, baseline circles can be added to the FHR by tapping on the FHR trace.
Tap on a circle and drag it around to alter the baseline value.
Tap and hold on a circle to display the delete icon to remove.

Variability

When this is selected, variability circles can be added to the FHR by tapping on the FHR trace.
Tap on a circle and drag it around to alter the variability.
Tap and hold on a circle to display the delete icon to remove.

Shapes

Shapes are the way accelerations and decelerations can be added to a FHR trace

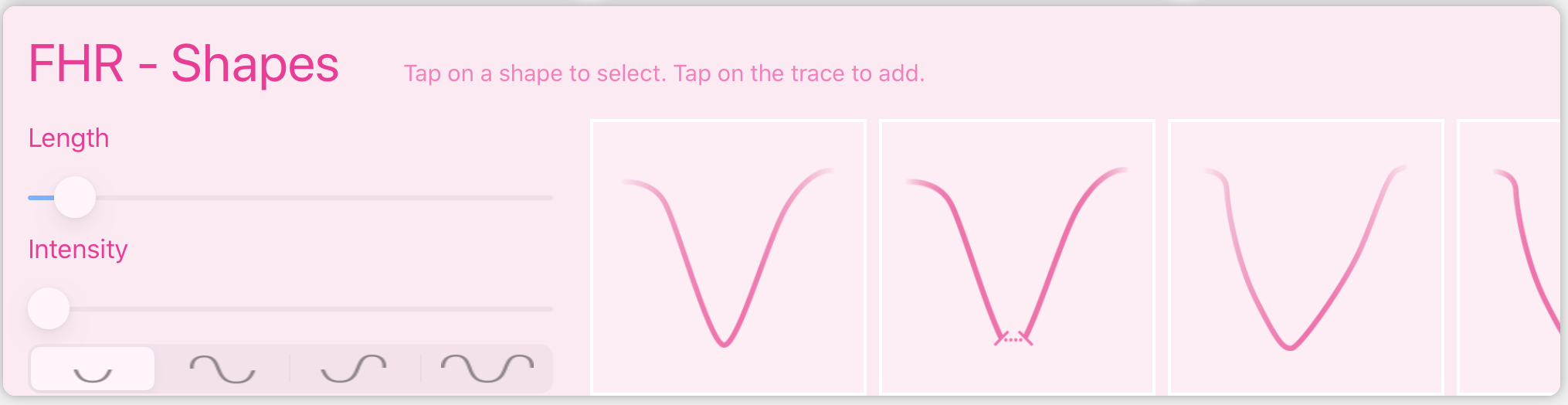

Scroll the images of the shapes to reveal the 27 shapes available.

Adding a new shape

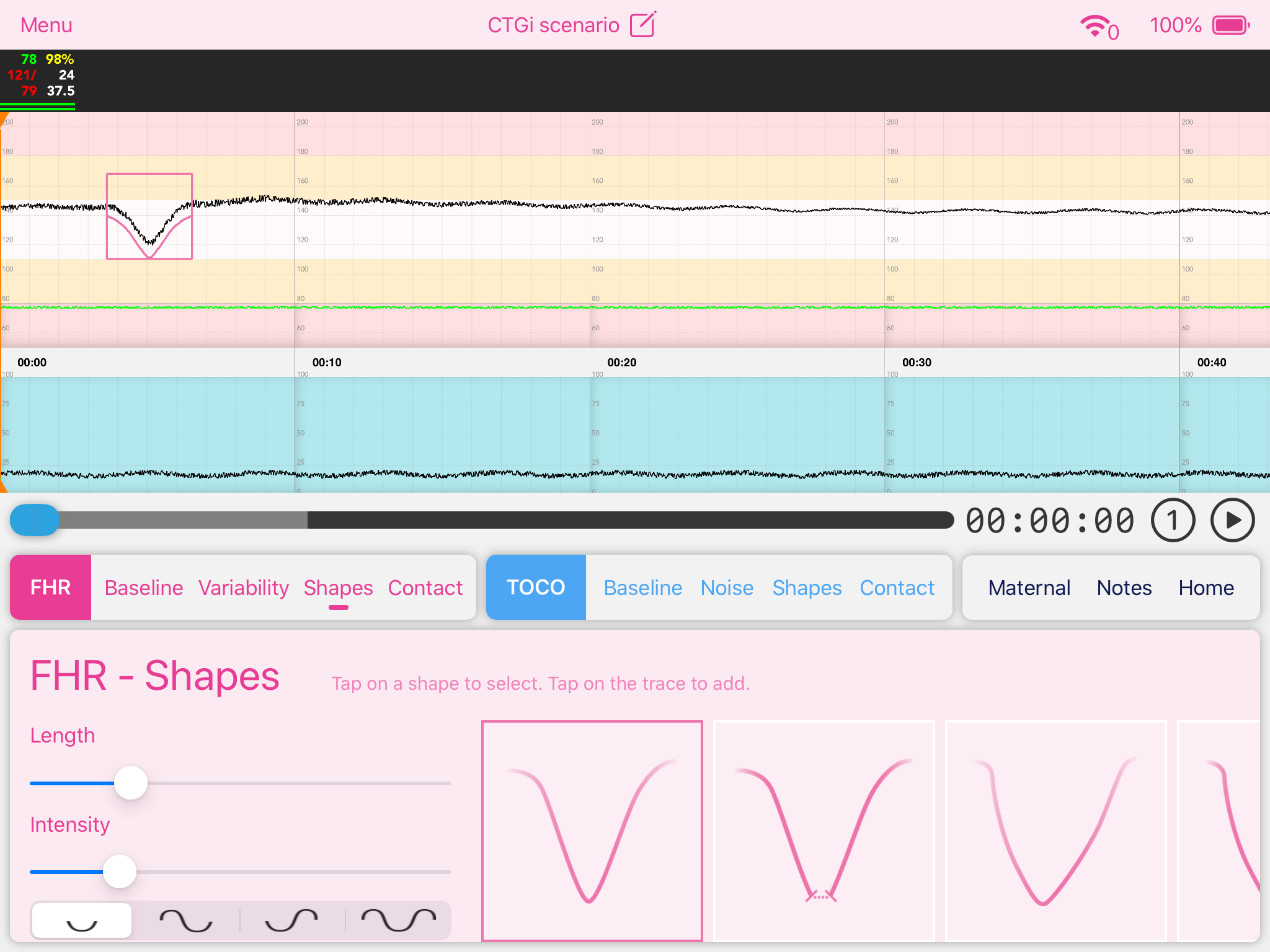

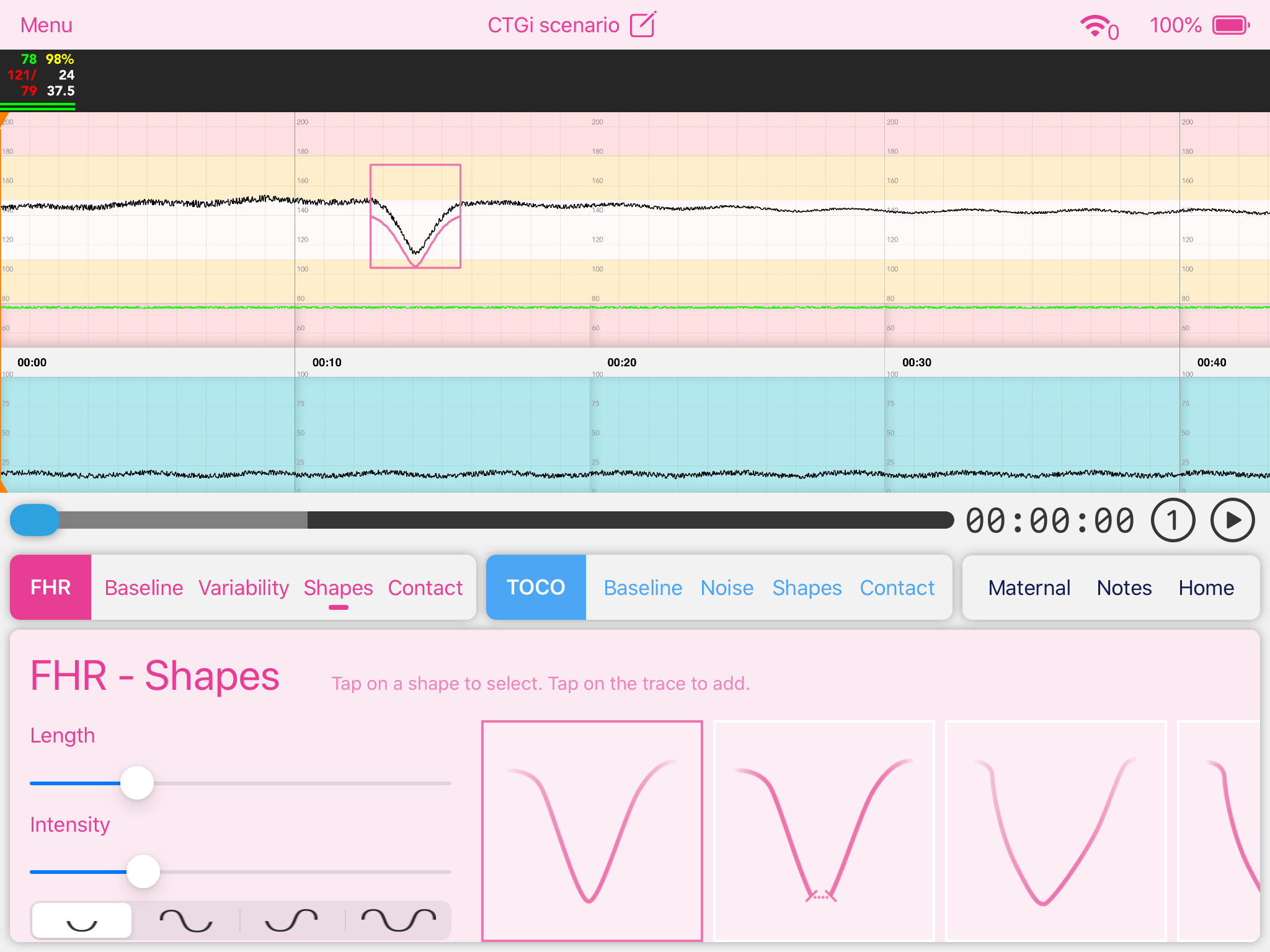

1. Select a shape - the border will change from white to pink to indicate selected shape.


2. Tap on the FHR trace to add the shape



3. Tap and drag the shape to move it along the trace

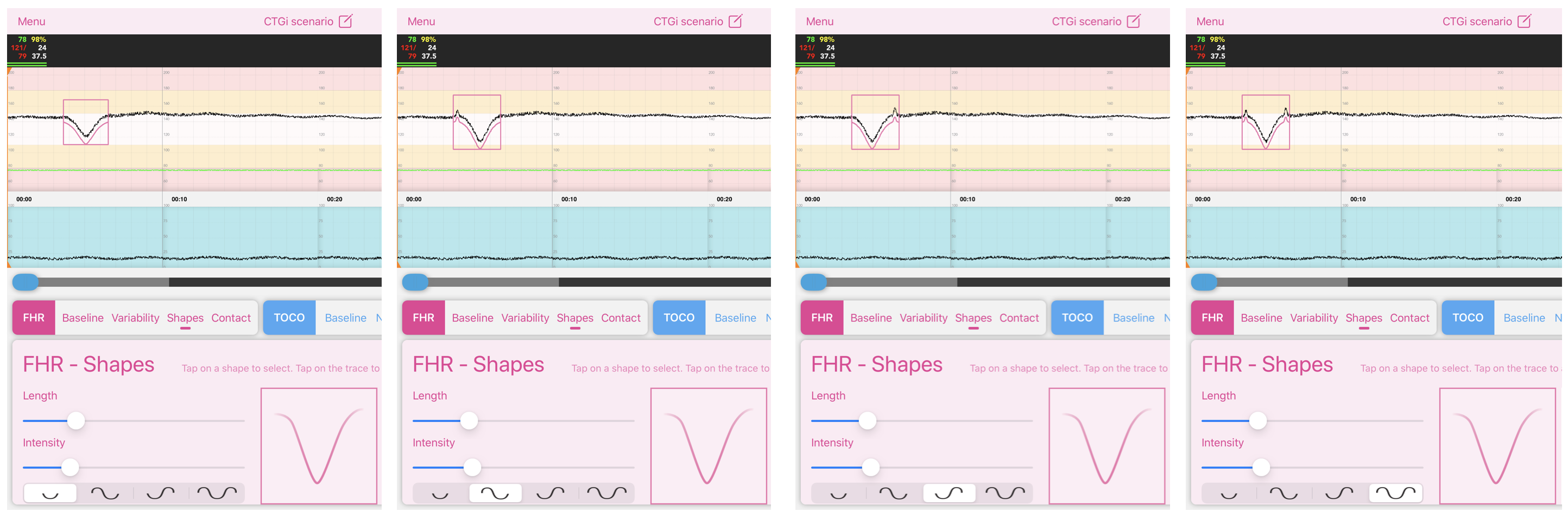

Shape Length and Intensity

Select a shape on the FHR trace.

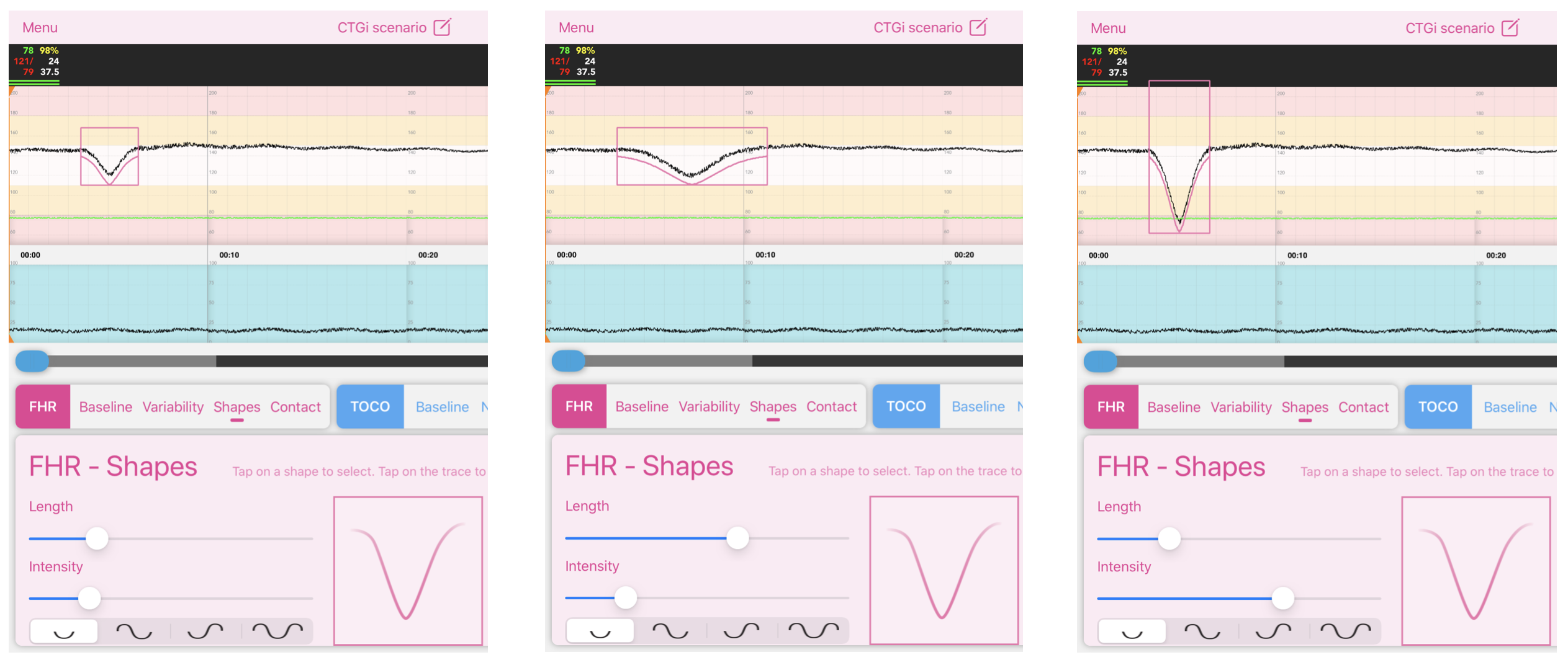

Use the Length and Intensity sliders to adjust the shape.

Shape Adjustment

Select a shape on the FHR trace

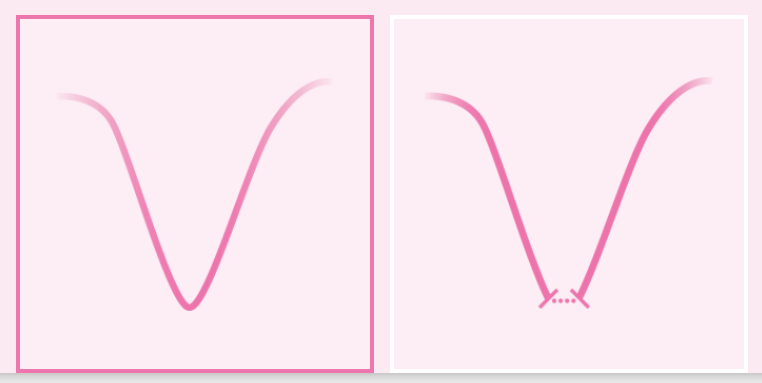

Tap on the Shape adjustment buttons to add accelerations before or after the deceleration

Shape Duplication and Deletion

Tap on a shape to reveal the duplicate and delete buttons

Duplicate - adds another shape to the right of the current shape

Delete - removes the shape.

Complex shapes

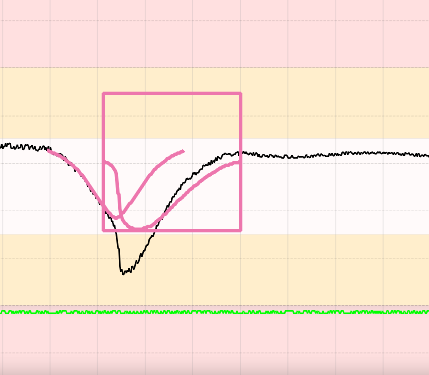

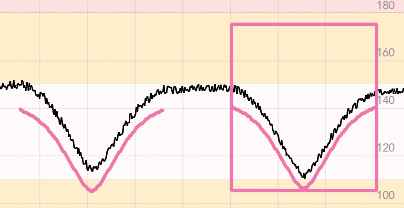

You can move shapes together to create complex shapes.

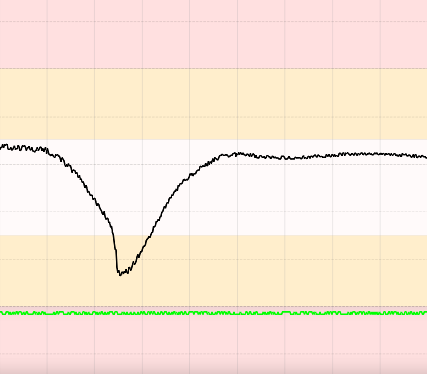

2 separate shapes

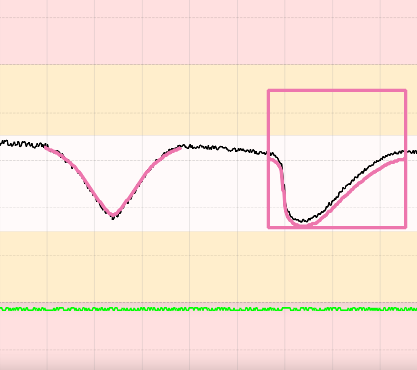

2 shapes combined

Final complex shape

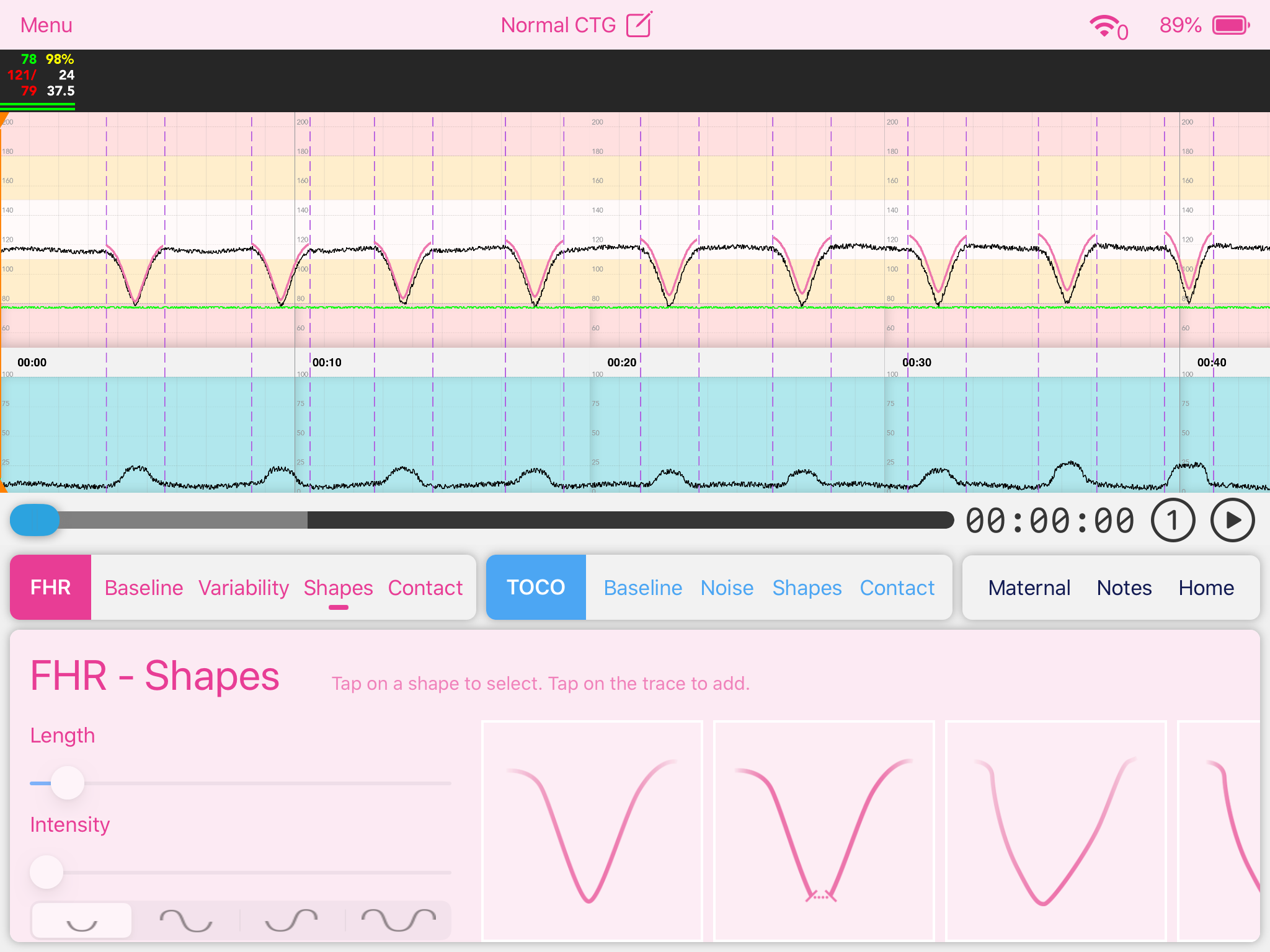

Adding shapes to an existing Tocograph

If a Tocograph trace has already been added, when FHR shapes are selected, vertical reference lines will appear.

Contact

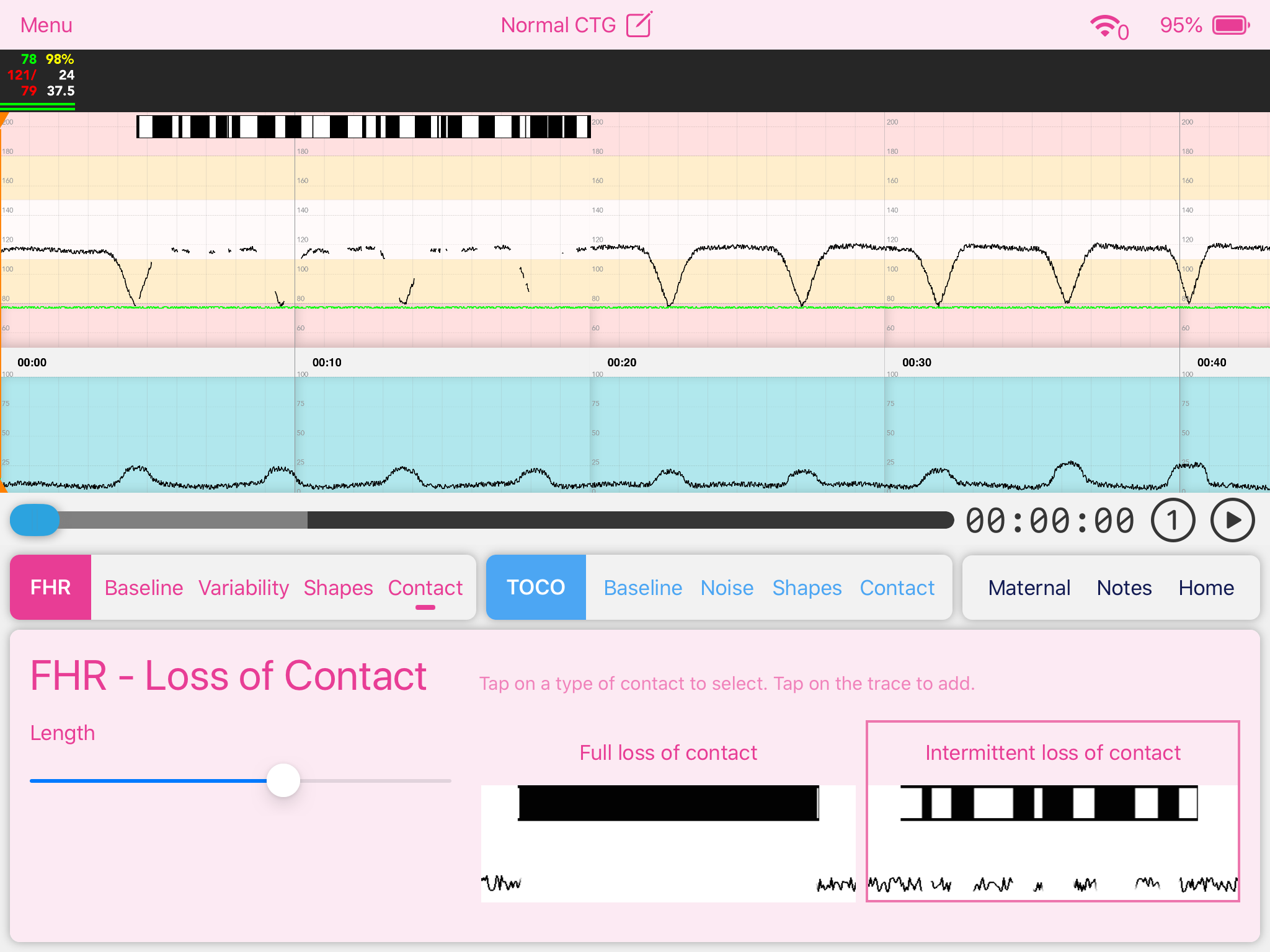

Loss of contact of the trace can be simulated.

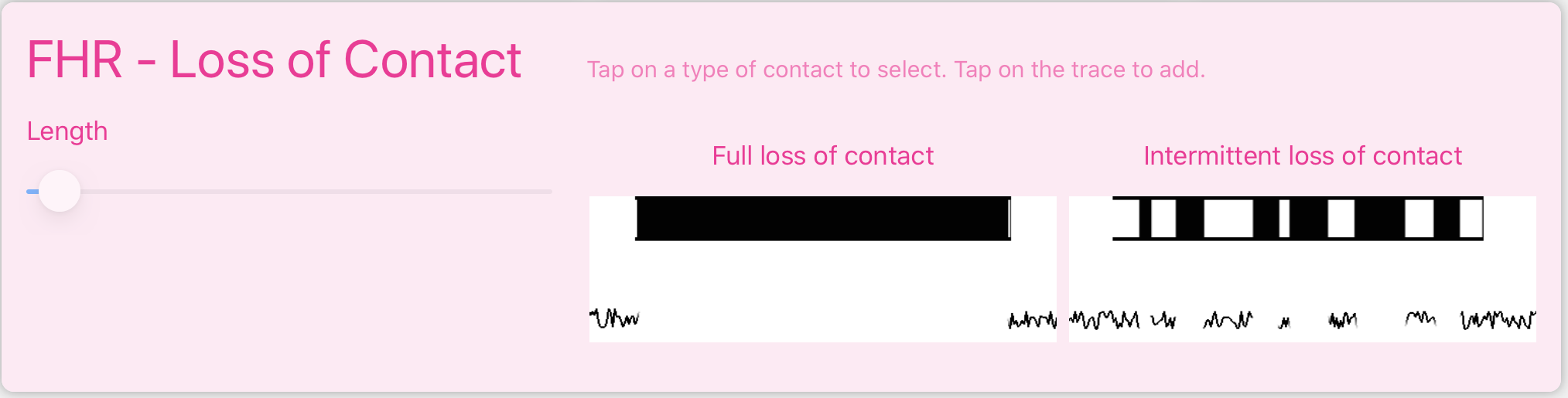

1. Select a loss of contact type - full or intermittent
2. Tap on the FHR trace to add

3. Tap and drag to move the loss of contact

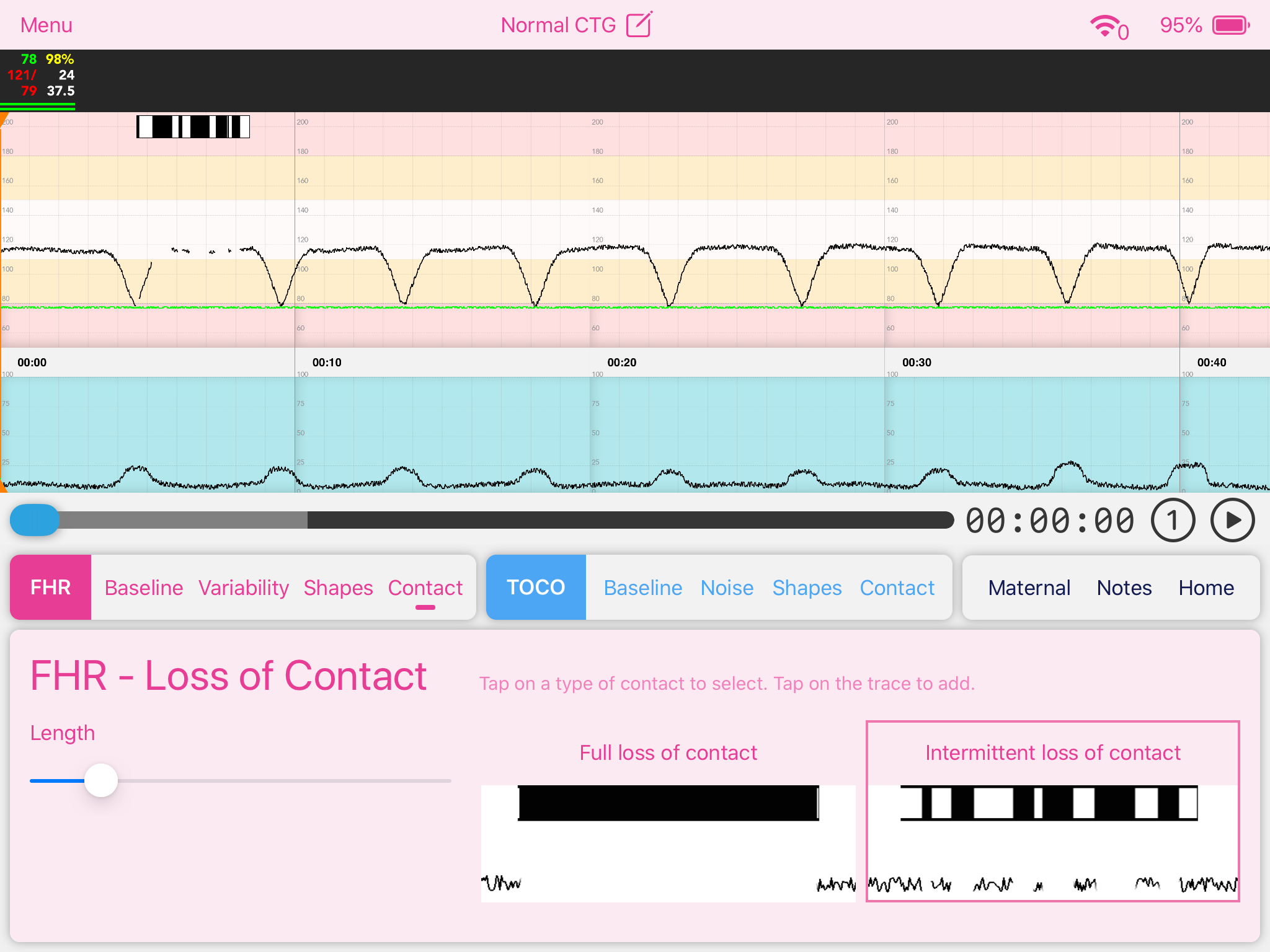

4. Adjust with the length slider

5. Tap and hold to show the duplicate and delete buttons
