Control - Section 1: Scenario Events

Events

Events are the way you can create, edit and run scenarios in REALITi.

A unique feature of REALITi is the ability to run a preset scenario while also being able to adjust parameters on the fly with the dial/slider controls.

You can also easily edit a scenario on-the-fly.

Selecting an event

Tap on an event box to activate it.
It turns light blue and automatically activates.

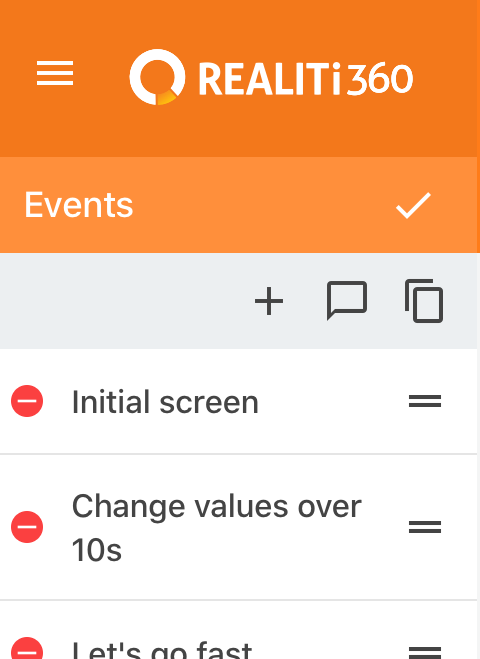

Editing Events

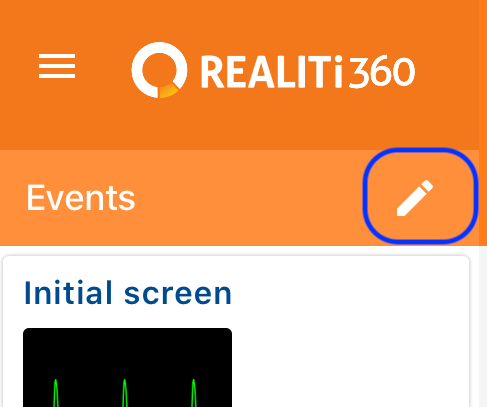

Tap on the pencil icon

This makes every event box editable

Now you can....

Add an event.

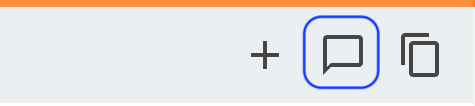

Add a text box

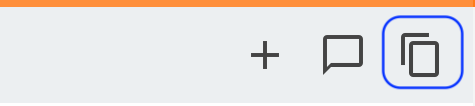

Duplicate an item

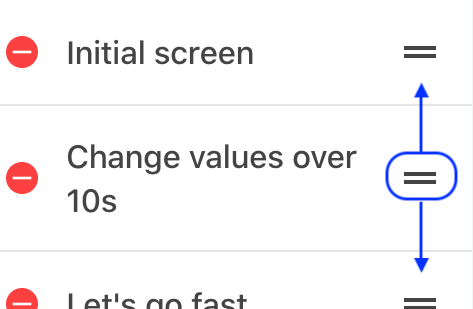

Reorder Events

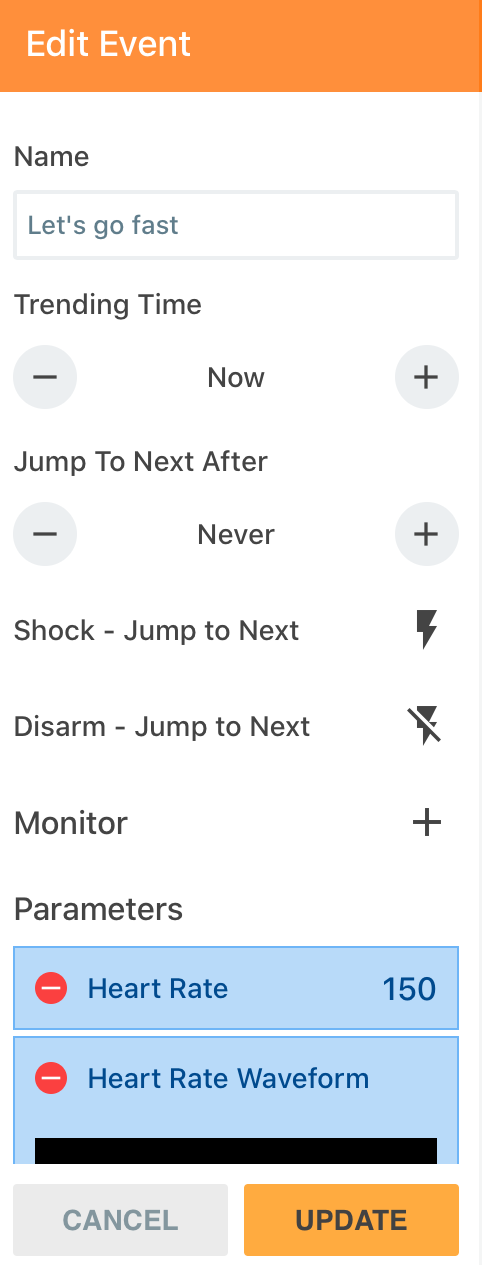

Editing an Event

When you select an Event, it opens up to reveal all of the parameters and controls associated with that event.
This allows you to:

• Change Trend Time
• Change Jump time
• Enable Shock - jump to next event
• Enable Disarm - jump to next event
• Change Monitor screen
• Alter parameters values, waveforms and show/hide status
• Add Checklist, Sounds, Media and Investigations

For more information on how to use Events to create Scenarios, see Scenario Creation.......
