Control - Section 6: Trending

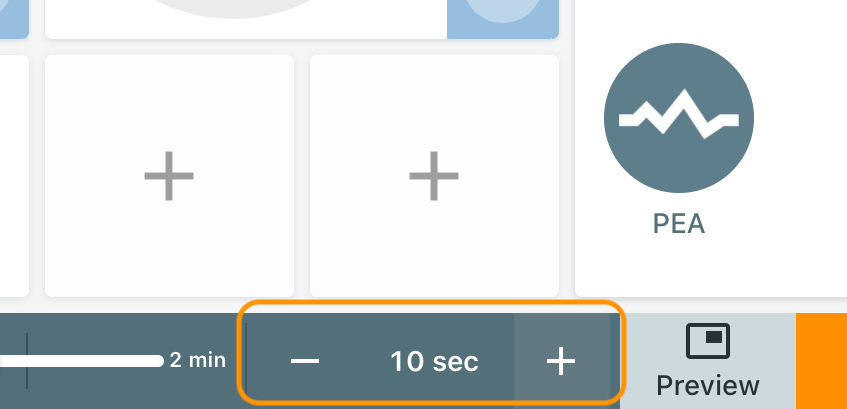

Select the desired time using the Trend - and + buttons

Set the delay for 10, 20, 30, 45, 60, 90 seconds or  2, 3, 4, 5, 10 15 minutes

Modify the desired physiological parameter(s)with the dials or numerics -/+

Press the Send button

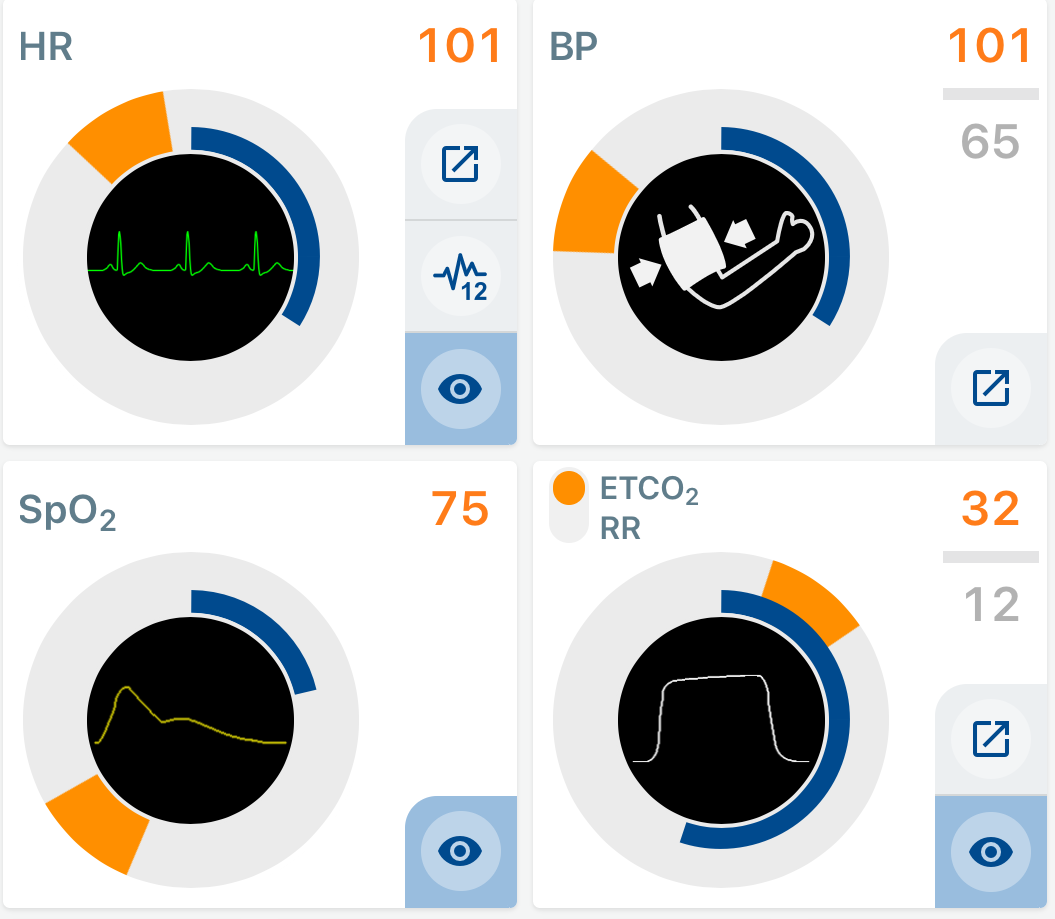

Multiparameter trending

You can choose to

• Trend a single parameter
• Trend multiple parameters with the same trend
• Trend multiple parameters with different trend times

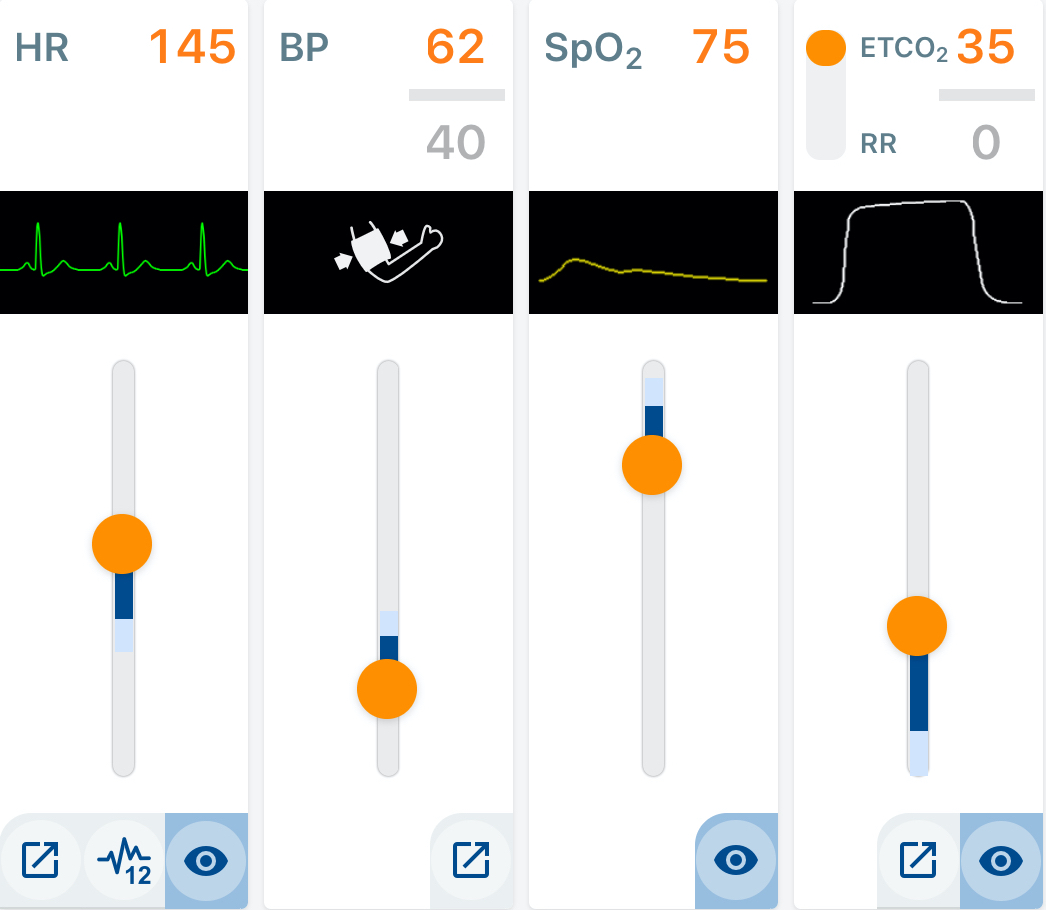

When a parameter with a dial or a slider is trending, a visual representation of the trend is shown by a blue marker around the dial or along the slider.
